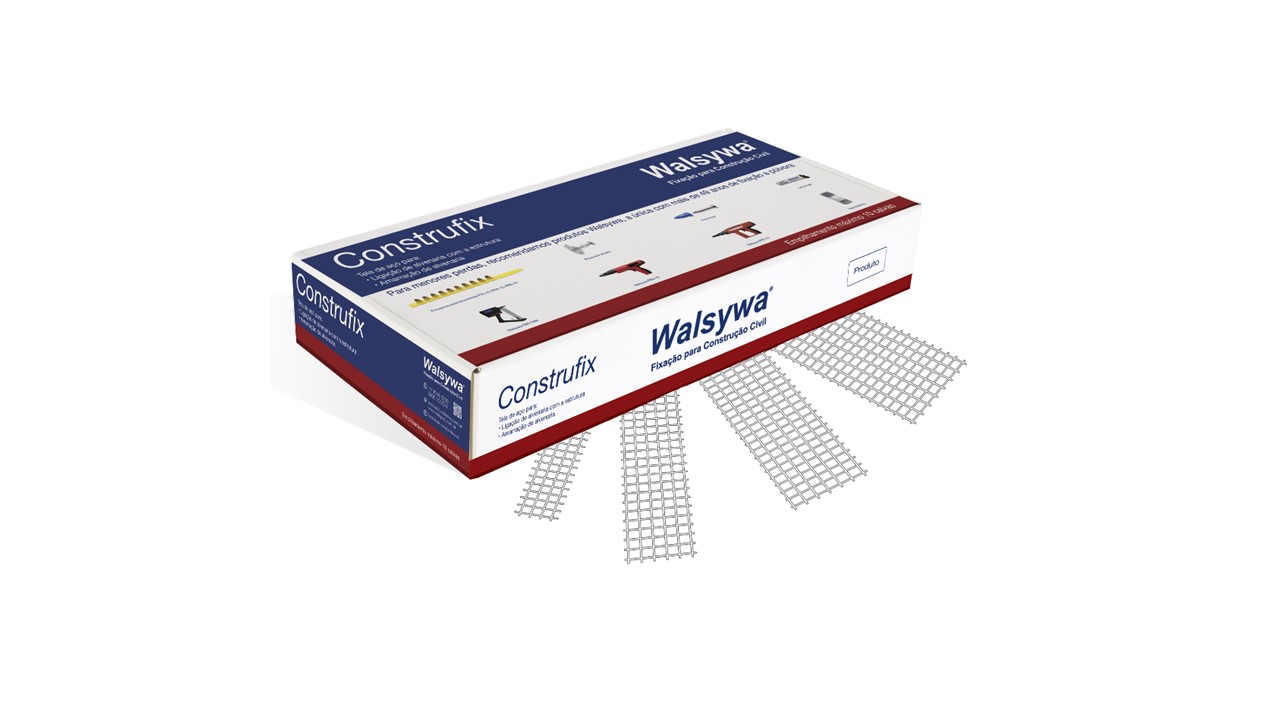

CONSTRUFIX MESH

Product Description:

Electro-welded screen made of 1.24 mm Ø, galvanized steel wire with 15 x 15 mm mesh, standard length of 50 cm and different widths.

TECHNICAL SPECIFICATIONS

  • They are metallic screens produced in galvanized steel, used in the union of masonry with the structure and between masonry, in order to avoid the appearance of cracks in these regions after finishing;
  • They are fixed to the concrete structure by means of smooth pins mounted with a washer and later folded over the row of bricks;
  • In addition to plain pins with washers, .27 caliber power loads are used with powder tools, such as PSL-10, PRA-10, PRX-10 and PRS-10, or gas cans with gas tools, as Naja 20, Naja 40 and GW-1000.

TECHNICAL TABLE

Code Screen width (cm) For concrete blocks (cm) For concrete blocks (cm) Length (cm) Amount per Box (parts)
590090 6,0 7 1,24 50 200
590091 7,5 9 150
590092 10,5 12 100
590093 12,0 14 100
590094 17,0 19 50

ASSEMBLY INSTRUCTIONS

Image01: Application instructions 1 The structure must be clean, free from splashes of grease or release agents;

Image02: 2 The surface of the structure must be roughened with roughcast mortar;

Image03: 3 The screens must be fixed from the 2nd row of bricks from the bottom to the top, every two rows up to the ceiling;

Image04: 4 For this fixation, the screens must be centered on the structure and fixed with two pins with washer, positioned 10 cm from the edge of the screen;

Image05: 5 The part with 40 cm of mesh must be folded over the row of bricks, where the laying mortar will then be applied.
