LENTIL HEAD DRYWALL SCREW

Name: LENTIL HEAD DRYWALL SCREW
Brand: Walsywa

Request a quote Buy online at the Partner Portal

Catalog – Walsywa 2026

Product description

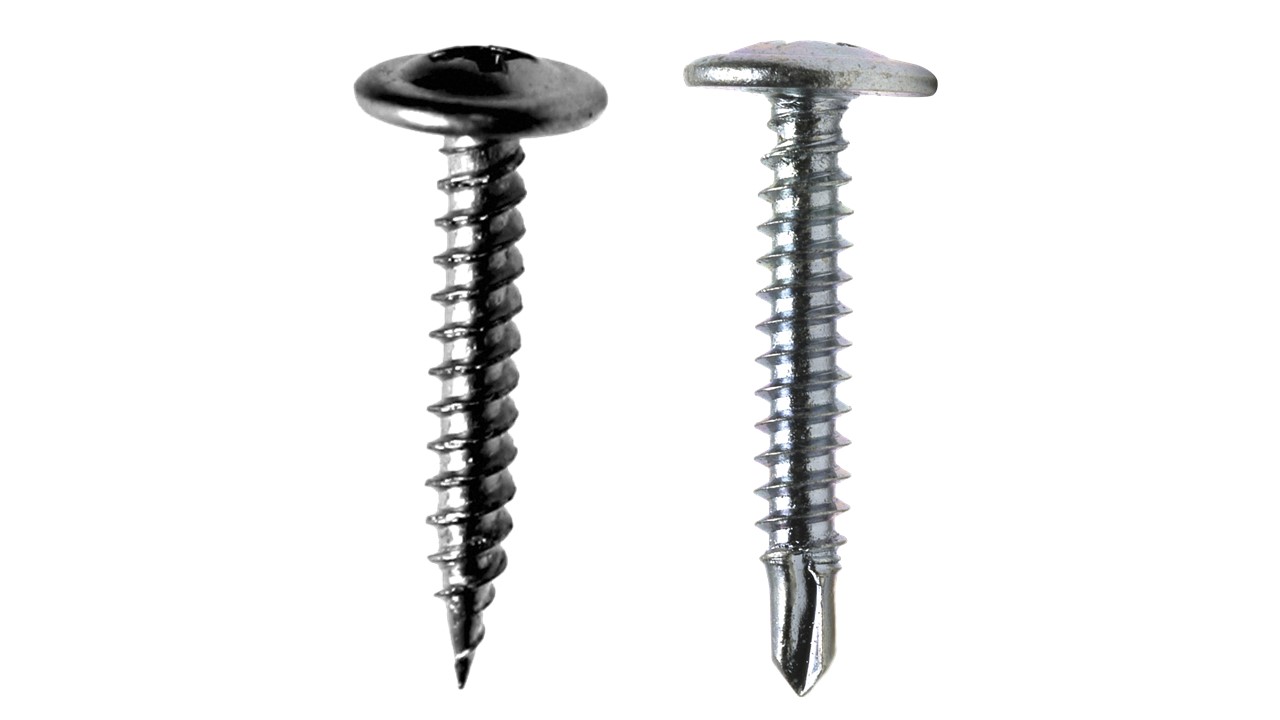

The Lentil Head Screw, known as metal-to-metal screw, is intended for fixing sheet metal to thin steel profiles, or fixing profiles to each other (Guides and Mounts). Walsywa supplies this screw in needle point and drill point versions.

Technical table

Punta aguja

Select	Código	Descripción	Diámetro de la rosca (mm)	Longitud (mm)	Embalaje (piezas)
363723 · TPA #8 x 1/2" ZB · 4,2	363723	TPA #8 x 1/2" ZB	4,2	13	1.000
363725 · TPA #8 x 3/4" ZB · 4,2	363725	TPA #8 x 3/4" ZB	4,2	19	1.000
363727 · TPA #8 x 1" ZB · 4,2	363727	TPA #8 x 1" ZB	4,2	25	1.000

Punta broca

Select	Código	Descripción	Diámetro de la rosca (mm)	Longitud (mm)	Embalaje (piezas)
363720 · TPB #8 x 1/2" ZB · 4,2	363720	TPB #8 x 1/2" ZB	4,2	13	1.000
363724 · TPB #8 x 3/4" ZB · 4,2	363724	TPB #8 x 3/4" ZB	4,2	19	1.000
363719 · TPB #8 x 1" ZB · 4,2	363719	TPB #8 x 1" ZB	4,2	25	1.000

TECHNICAL SPECIFICATIONS

Intended for fixing sheet metal to thin steel profiles or fixing profiles to each other;
Lentil head;
Phillips Slot #2;
Superb thread No. 8 (Ø 4.2 mm);
Needle tip (profiles up to 0.7 mm) / Drill tip (profiles from 0.7 to 2 mm);
Shiny zinc-coated finish.

TECHNICAL TABLE

Needle tip

Code	Description	Thread Diameter (mm)	Length (mm)	Packages (parts)
363723	TPA #8 x 1/2" ZB	4,2	13	1.000
363725	TPA #8 x 3/4" ZB	4,2	19	1.000
363727	TPA #8 x 1" ZB	4,2	25	1.000

Drill tip

Code	Description	Thread Diameter (mm)	Length (mm)	Packages (parts)
363720	TPB #8 x 1/2" ZB	4,2	13	1.000
363724	TPB #8 x 3/4" ZB	4,2	19	1.000
363719	TPB #8 x 1" ZB	4,2	25	1.000
