WALTOG FIXING
Product description
Waltog Fixing is a bushing intended for light anchors (such as lighting fixtures, frames, and panels) in drywall boards and plaster ceilings. Walsywa supplies the Waltog fixing together with the screw.
Technical table
| Medición | Diámetro de la broca | Diámetro del tornillo (mm) | Cargas de trabajo permisibles kgf Plancha drywall ½” | Cargas de trabajo permisibles kgf Plancha drywall 5/8” | Cargas de trabajo permisibles kgf Bloque hueco |
|---|---|---|---|---|---|
| WALTOG 2 | 3/8" | 3,5 - 4,5 | 9 | 11 | 18 |
| WALTOG 3 | 3/8" | 3,5 - 4,5 | 9 | 15 | 22 |
TECHNICAL SPECIFICATIONS
- For lightweight anchors (such as lighting fixtures, frames and panels) on drywall boards and plaster ceilings;
- Made of nylon (polyamide) – does not dry out or become brittle;
- Available in two sizes: Waltog 2 for 1/2" boards, Waltog 3 for 5/8" boards;
- Comes with screw.
TECHNICAL TABLE
| Measurements | Drill Diameter | Screw Diameter (mm) | Permissible workloads kgf | ||
| Drywall sheet ½” | Drywall sheet 5/8” | Hollow block | |||
| WALTOG 2 | 3/8" | 3,5 - 4,5 | 9 | 11 | 18 |
| WALTOG 3 | 3/8" | 3,5 - 4,5 | 9 | 15 | 22 |

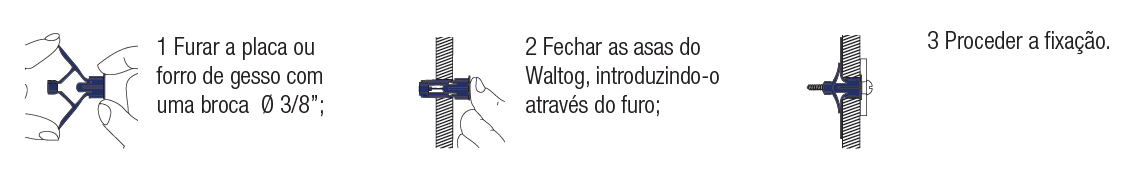

ASSEMBLY INSTRUCTIONS
Image01: 1 Drill the plasterboard or lining with a 3/8” diameter drill;
Image02: 2 Close the wings of the Waltog, inserting it through the hole;
Image03: 3 Proceed with fixing.
