Product description
The MP Fixing a universal fixing, intended for fastening in hollow materials, solids, and Drywall plates. Walsywa supplies the MP fixing in 8mm to 14mm measurements.
Technical table
| Select | Código | Medición | Diámetro del tornillo (mm) | Longitud mínima del tornillo (mm) | Cargas de trabajo permitidas kgf Hormigón | Cargas de trabajo permitidas kgf Bloque hueco de hormigón |
|---|---|---|---|---|---|---|
| 365069 | Bucha MU Ø 8 x 42 | 5 | 50 | 50 | 30 | |
| 365070 | Bucha MU Ø 10 x 50 | 6 | 60 | 60 | 30 | |
| 365071 | Bucha MU Ø 12 x 60 | 8 | 70 | 85 | 35 | |
| 365072 | Bucha MU Ø 14 x 100 | 10 | 120 | 120 | 35 |
TECHNICAL SPECIFICATIONS
- The Multipurpose Fixing is indicated for light loads on different substrates;
- It can be applied on solid base materials (fixation by expansion) or hollow (fixation by knots);
- Made of polyamide (nylon);
- Does not dry out over time.
TECHNICAL TABLE
| Code | Measurements | Screw Diameter (mm) | Minimum screw length (mm) | Permissible workloads kgf | |
| Concrete | Hollow concrete blocks | ||||
| 365069 | Bucha MU Ø 8 x 42 | 5 | 50 | 50 | 30 |
| 365070 | Bucha MU Ø 10 x 50 | 6 | 60 | 60 | 30 |
| 365071 | Bucha MU Ø 12 x 60 | 8 | 70 | 85 | 35 |
| 365072 | Bucha MU Ø 14 x 100 | 10 | 120 | 120 | 35 |

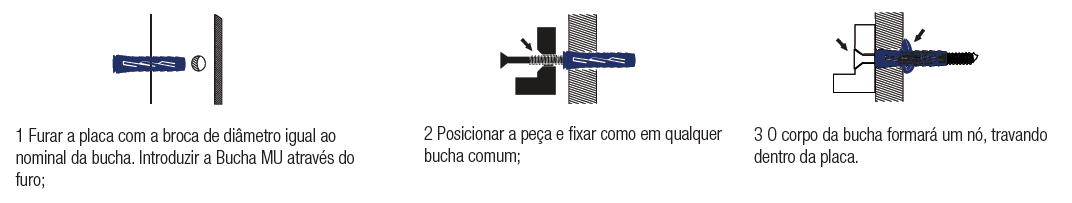

ASSEMBLY INSTRUCTIONS
Image01: 1 Drill the plate with a drill with a diameter equal to the fixing nominal diameter. Insert the MP Fixing into the hole;
Image02: 2 Proceed with fixing the element as in any common fixation;
Image03: 3 The fixing body will form a knot, locking into the plate.
Request a quote
MP FIXING
Base materials
-
Concreto
-
Bloco oco
-
Pedra
-
Drywall
-
Placa cimentícia
-
Painel wall
-
Madeira
-
OSB
-
Aço Estrutural
-
Telha metálica
-
Alumínio
-
Guias e montante
