The PE Hollow Plug is intended for fixings in hollow and diverse materials, such as plasterboard or other materials with more than 6 mm thick. Walsywa supplies the PE hollow fixing in 6mm to 10mm measurements.
|Code||Measurements||Drill Diameter (mm)||Screw Diameter (mm)||Minimum screw length (mm)||Permissible workloads kgf|
|Drywall sheet||Hollow concrete blocks|
|365030||OCO PE – 6||6||3,5 – 4,0||45 + Efix||5||11|
|365031||OCO PE – 8||8||4,2 – 4,5||45 + Efix||5||17|
|365032||OCO PE – 10||10||6,0||45 + Efix||5||23|

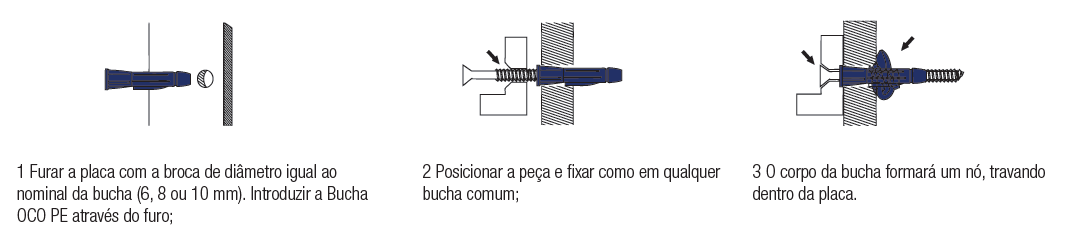

Image01: 1 Drill the plate with a drill with a diameter equal to the fixing nominal diameter (6, 8 or 10 mm). Insert the PE Hollow Fixing into the hole;
Image02: 2 Proceed with fixing the element as in any common fixation;
Image03: The fixing body will form a knot, locking into the plate.
