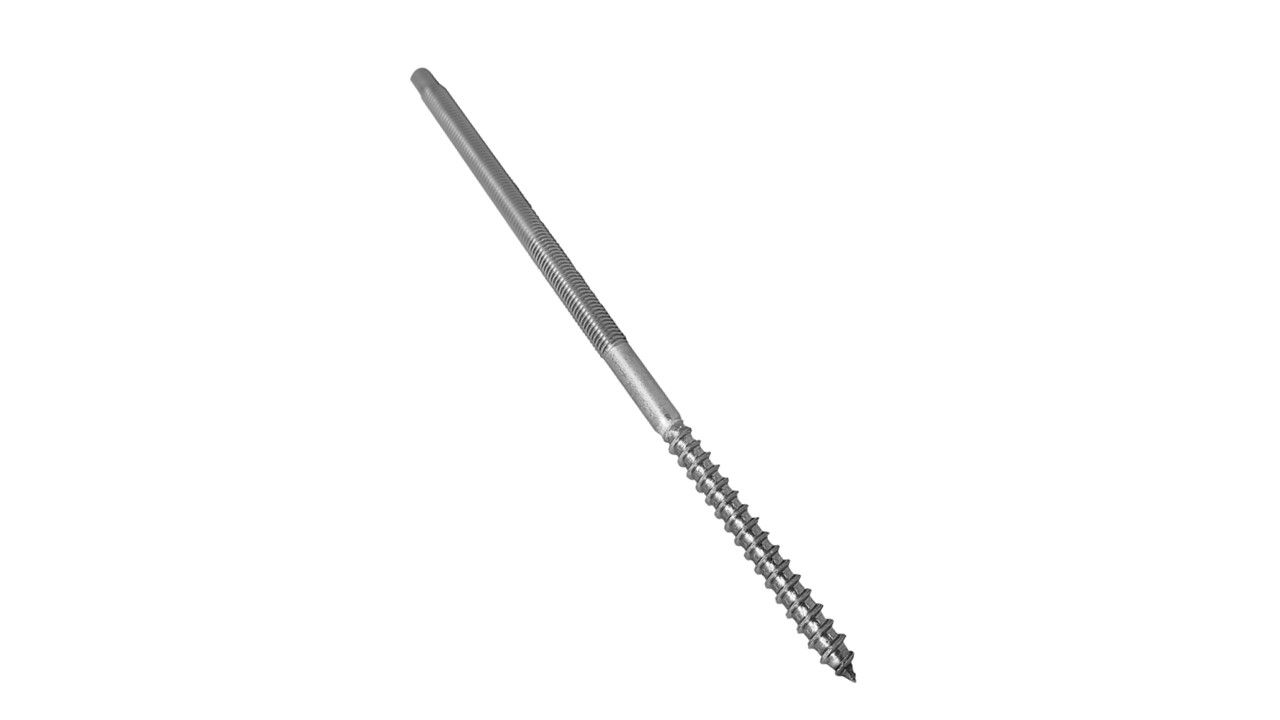

ROD FOR WOODEN SOLAR PANEL

Product Description:

Threaded rod used in the assembly of the structures of the solar panels to be fixed to wooden substructures, between tile and rafter.

TECHNICAL SPECIFICATIONS

– Material: AISI 304 INOX

– Superb thread

– Finishing: Passivated

TECHNICAL TABLE

Code Description Pitch (mm) Wrench Nut (mm) Rod Wrench (mm) Wood hole diameter (mm) Wood hole diameter (mm) Total length (mm) Packages (parts)
800920 Rod Solar Panel M10 X 200 304 INOX 1,5 17 7 8 12 200 50 PC
800921 Rod Solar Panel M10 X 250 304 INOX 1,5 17 7 8 12 250 50 PC
800922 Rod Solar Panel M10 X 300 304 INOX 1,5 17 7 8 12 300 50 PC

Base Materials

Concrete
Hollow Block
Rock
Drywall
Cement Board
Wall Panel
Wood
OSB
Structural Steel
Metal Tile
Aluminum
Guides and amounts

TYPES OF MATERIALS
