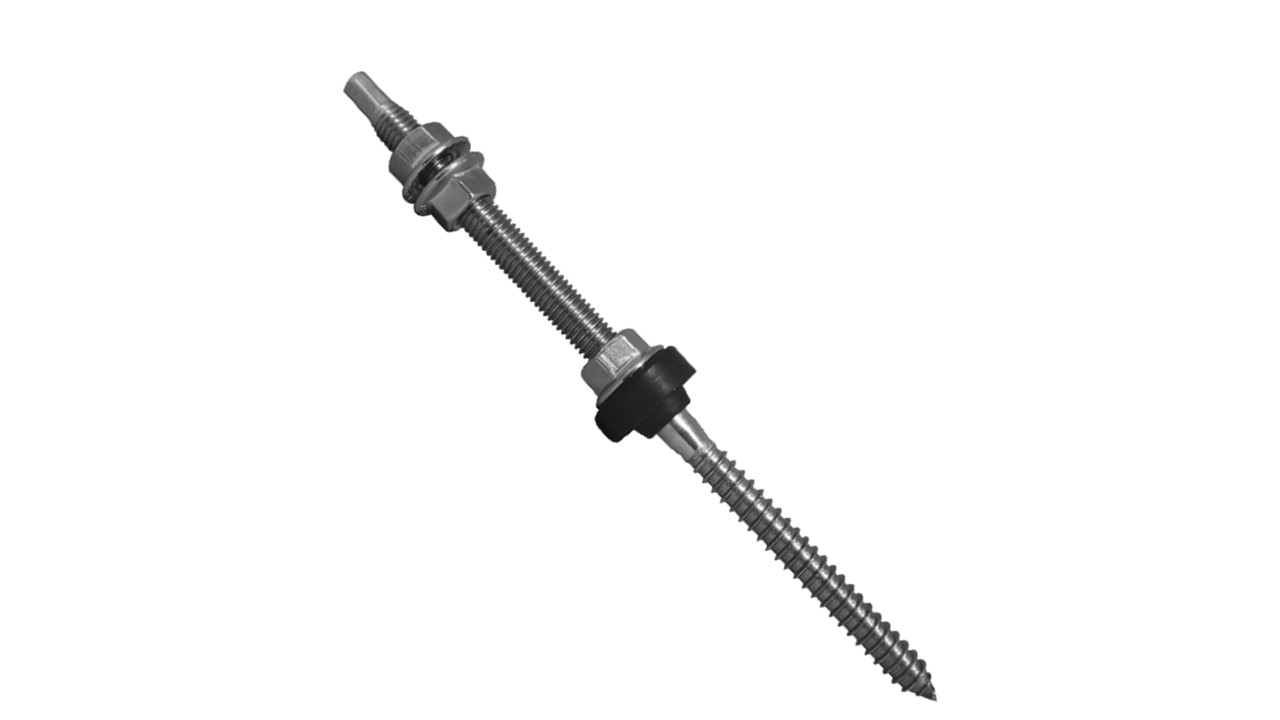

Set consisting of threaded rod, nuts and sealing washer. Used in assembling the structures of the solar panels to be fixed on wooden substructures, between tile and rafter. Its application is made directly on the substructure, without the need for pre-drilling.
– DIN 13 thread (ISO 965) 6 g
– Material: AISI 304 INOX
– Superb thread for fixing to wood
– Finishing: Passivated
– Composition: threaded rod, 3 flanged nuts, and EPDM washer
| Code | Description | Pitch (mm) | Wrench Nut (mm) | Rod Wrench (mm) | Wood hole diameter (mm) | Tile hole diameter (mm) | Total length (mm) | Packages (parts) |
| 800440 | CITO Solar Panel Rod M10 X 200 304 INOX | 1,5 | 17 | 7 | 8 | 12 | 200 | 100 PC |
| 800441 | CITO Solar Panel Rod M10 X 250 304 INOX | 1,5 | 17 | 7 | 8 | 12 | 250 | 100 PC |
| 800442 | CITO Solar Panel Rod M10 X 300 304 INOX | 1,5 | 17 | 7 | 8 | 12 | 300 | 100 PC |
| 800446 | CITO Solar Panel Rod M10 X 300 304 INOX | 1,5 | 17 | 7 | 8 | 12 | 400 | 100 PC |
